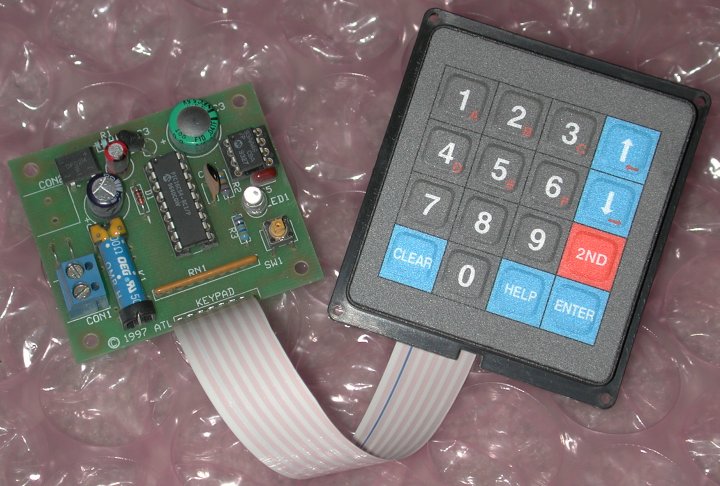

Assembled Unit


Much of the above documentation is in Adobe's PDF format.  You can get a free copy of the Acrobat Reader here:

Garage Door Keypad

This garage door keypad offers two key features not available on commercial counterparts:

Derived power: This unit can power itself from the typical two wire auxiliary button already provided to manually operate the door. This eliminates the need for a separate power supply in most installations.

Improved security: Most commercial units support only a four digit code. This unit can be programmed with variable length codes from 1 to 99 digits.

And it's fun and easy to build, includes an industrial grade keypad, and provides an excellent opportunity to learn about the wonderfully versatile and useful Microchip PIC devices.

FAX (or mail) your order, using our FAX Order Sheet

Item Click to enlarge Description Weight Price
K8-PCB Gdoor_bare_board.jpg (114501 bytes) Printed circuit board   1 oz. $15
K8   Kit of all parts   6 oz. $39
